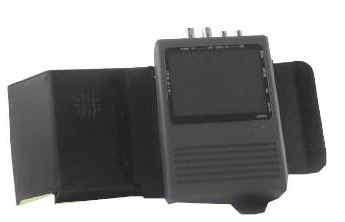

This battery powered
4" TFT makes any installers life a whole lot easier.
No need to run back and for to the CCTV monitor to see if your
camera is positioned properly. You simply plug the camera
directly into the 4" TFT and you see what the positioning
looks like. No more guess work!

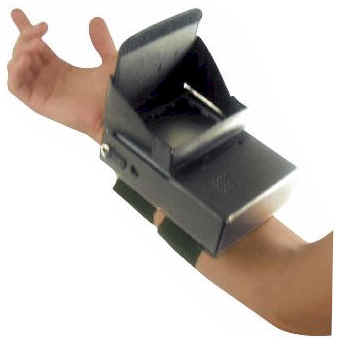

Comes with a rechargeable battery, Handy carrying case with
see through front, Two straps designed to go around the
installers neck so the display is in a hands free position.
The straps are adjustable so you can get the angle you need.
 |
Features
2 video inputs
1 audio input
1 video output
Left & right reverse image
Low power consumption
Specifications
Display screen size 4" (10 cm)
Active area 82.1(W) x 61.8(H)
Element Color TFT LCD
Resolution 480x234
Video system NTSC; H: 15.75 Khz, V: 60 Hz, c: 3.58 MHz.
PAL; H: 15.625 Khz, V: 50 Hz, c: 4.43 MHz.
Power source DC 12V
Voltage range DC 9V~DC 13V
Viewing angel L/R: 45°, Top: 30°, Down: 60°
Power consumption 340 mA, 5W Max.
Operating temperature 0°C~60°C
Storage temperature -20°C~80°C
Operating humidity 85% RH
Storage humidity 85% RH
Overall dimensions 139.0(W) x 115.0(H) x 36.0(D)
Reverse image Left and Right
Weight 450 grams ± 10 grams
Accessories
Rechargeable Battery x 1
Carry Bag x 1
Adapter x 1 (Battery Charger)
Power Cord x 1
Carry Belt x 1, Waist Belt x 1
RCA/BNC connector x 3 |
